Powerstroke 7.3L Turbo Turbine Shaft And Wheel (1994 - 1997)

  • $ 89.99


Year: 1994 - 1997

Application: Ford Powerstroke Diesel

Engine Displacement: 7.3 Liter

Turbo Model: Garrett TP38

(Part Number: 812-1059-001)

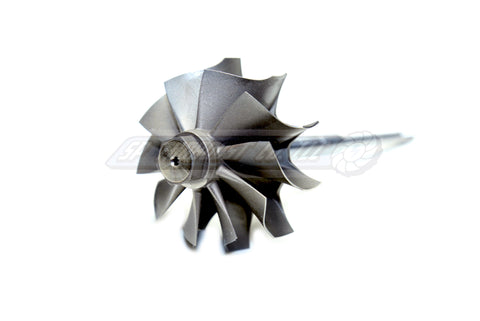

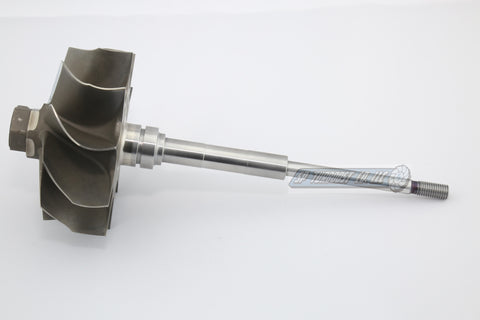

Ford Powerstroke 7.3L Turbo Turbine Shaft And Wheel For TP38 Turbo



This brand new turbine shaft and wheel is for 1994 - 1997 Ford Powerstroke 7.3L turbos ONLY with the 69.80mm exducer. This will NOT fit 1999.5 - 2003 GTP38 turbo, in which the turbine shaft is slightly smaller (67.78mm). It comes pre rotor balanced on a Hofmann balancer and it is ready to be installed.



Shaft And Wheel Measurements:

Inducer: 76.50 MM

Exducer: 69.80 MM

Tip Height: 13.38 MM

Journal: 10.16 MM

Stem: 6.35 MM

Blades: 10
