Turbo Model: S400

SKU: 867-1129-002

Borg Warner Schwitzer S400 Turbo Severe Duty Rebuild Kit

This rebuild kit fits any Borg Warner S400 turbos, both T4 and T6 turbine wheels.

It is compatible with:

S463

S464

S465

S467

S467.7(FMW)

S468

S471

S472SXE

S475

S476SXE

S478

S480SXE

S482

S483

S484

S485

S488SXE

S491

360 degree thrust system:

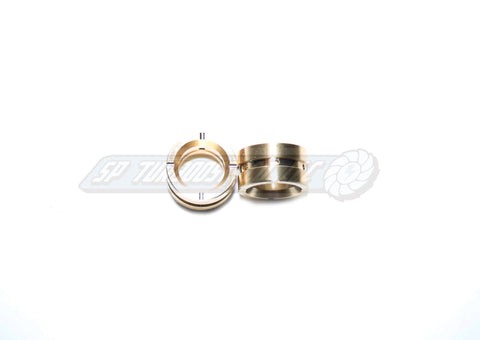

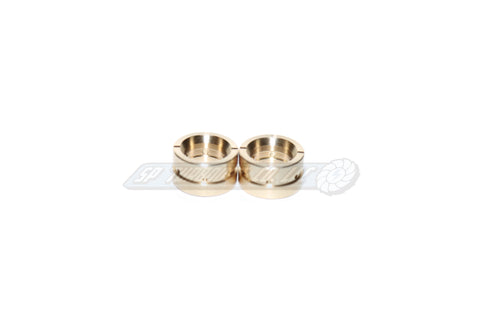

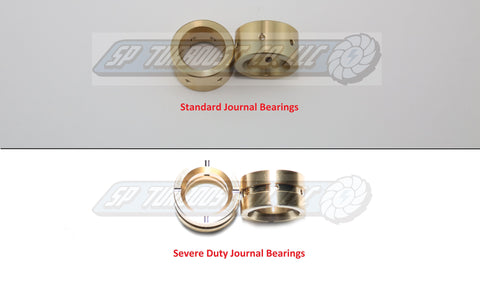

The advantage of a 360 degree thrust bearing is that it has a full circle of lubrication, and an updated pad strategy to better disperse oil where it's needed. Most of the performance diesel turbochargers are running with this kind of set up for durability and longevity. Along with the improved journal bearing design, you will get a much better oil flow versus the conventional 270 degree thrust bearing.

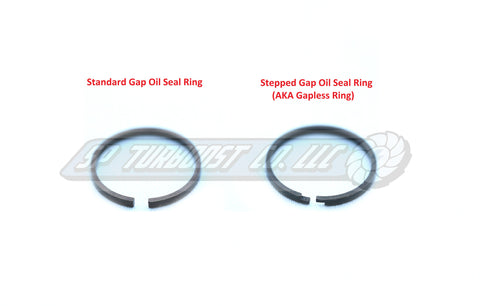

Stepped gap seal ring set:

Would you like to minimize the possibility of oil leak in your turbo? This upgraded stepped gap seal ring set provides a superior seal over the stock style seal ring. It keeps your turbo wheels clean, free of deposits caused by oil leaking through the seal.

***Important Note***

There is no warranty, instructions, or tech support on any DIY products.
